3. Aligning datasets#

[1]:

from pathlib2 import Path
import papylio as pp
import numpy as np
import matplotlib.pyplot as plt

from skimage.transform import AffineTransform

%matplotlib inline

Experiment import#

Note that the sequencing data is automatically imported.

[2]:

experiment_path = Path(r'C:\Users\user\Desktop\SPARXS example dataset')

[3]:

exp = pp.Experiment(experiment_path)

Import files: 100%|██████████████████████████████████████████████████████████████| 4190/4190 [00:00<00:00, 6600.31it/s]


File(Single-molecule data - bead slide\Bead slide TIRF 561 001) used as mapping

Initialize experiment:
C:\Users\user\Desktop\SPARXS example dataset

Import sequencing data:
Sequencing data\sequencing_data.nc

[4]:

files_bead_slide = exp.files.select('Bead slide', 'name')
files_green_laser = exp.files.select('Single-molecule data - green laser', 'relativePath')
files_red_laser_before = exp.files.select('Single-molecule data - red laser before', 'relativePath')
files_red_laser_after = exp.files.select('Single-molecule data - red laser after', 'relativePath')

[5]:

files_red_laser_before.movie.illumination_arrangement = [1]
files_red_laser_after.movie.illumination_arrangement = [1]

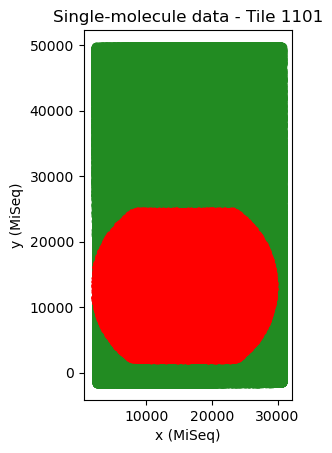

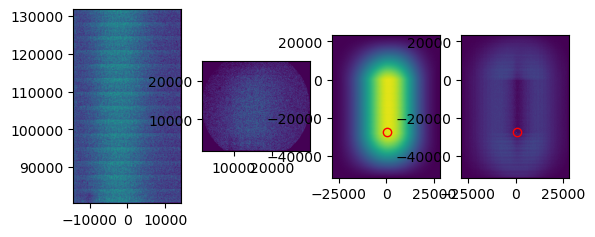

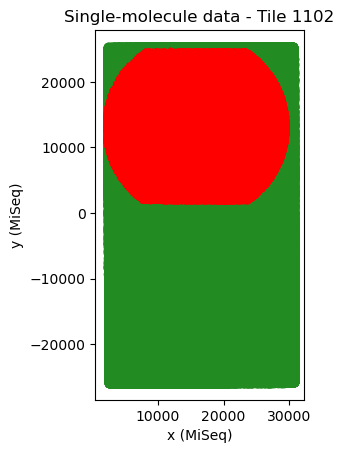

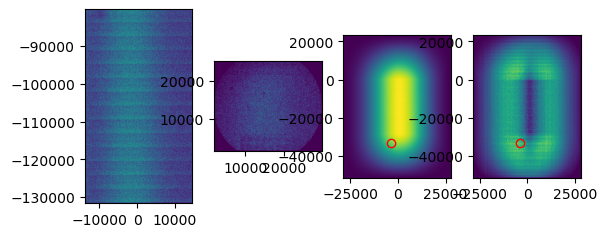

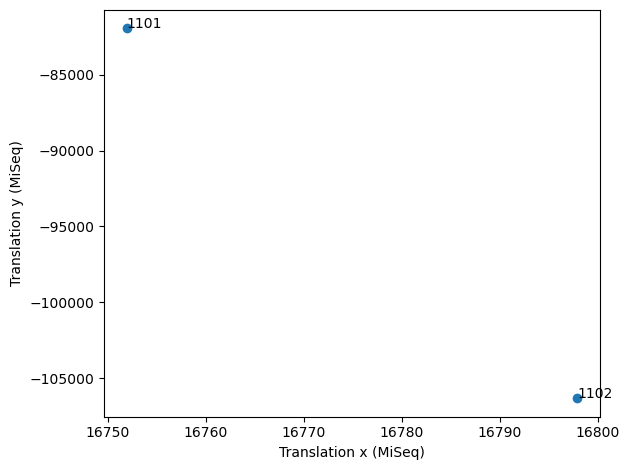

Extract sequencing data per FOV#

After the performing tile alignment, we roughly know which sequences belong to which field of view. Therefore, in the next step we obtain the sequencing data for each field of view and store it in a _sequencing_data.nc file.

[13]:

files_green_laser.parallel_processing_kwargs['require'] = 'sharedmem'
exp.transform_sequencing_to_single_molecule_coordinates()
files_green_laser.get_sequencing_data(margin=5, mapping_name='Single-molecule data')
files_green_laser.parallel_processing_kwargs.pop('require')

100%|██████████████████████████████████████████████████████████████████████████████████| 4/4 [00:00<00:00, 67.28tile/s]
  0%|▎                                                                                 | 4/896 [00:00<00:28, 31.77it/s]

Serial processing

100%|████████████████████████████████████████████████████████████████████████████████| 896/896 [04:30<00:00,  3.31it/s]

[13]:

'sharedmem'

margin add an extra margin of sequencing data around the single-molecule data to allow for some inaccuracy in the tile alignment. The unit is μm.

mapping_name should be the same name given to the tile alignment earlier.

Fine FOV alignment#

In this step, each single-molecule FOV is matched to the sequencing data. For each single-molecule FOV there might be slight deviations in molecule position due to image aberrations or inaccuracies in the stage position. Therefore, the translation, rotation and scaling for each single-molecule FOV are fine-tuned.

Generate FOV alignment files#

Now we use the single-molecule coordinates and sequencing data for each field of view to generate an alignment file _sequencing_match.nc (with similar format as the channel mapping and tile mapping).

[14]:

files_green_laser.parallel.generate_sequencing_match(overlapping_points_threshold=25,
                                                   excluded_sequence_names=['CalSeq', '*'],
                                                   plot=False)

  0%|                                                                                          | 0/896 [00:00<?, ?it/s]

Parallel processing

100%|████████████████████████████████████████████████████████████████████████████████| 896/896 [00:38<00:00, 23.34it/s]

overlapping_points_threshold Indicates the minimum number of points within the overlapping area between the datasets, for the file to be included.

excluded_sequence_names can be used to exclude sequences that are not fluorescent and thus can not be seen in the single-molecule dataset. These should follow the same naming as used in the reference.fasta file. In our case the CalSeq sequence was not fluorescent, and was therefore excluded. * is the reference name given by Bowtie2 for any sequence that could not be aligned.

[15]:

sequencing_matches = exp.sequencing_matches(files_green_laser)

[16]:

sequencing_matches[0].show()
sequencing_matches[50].show()

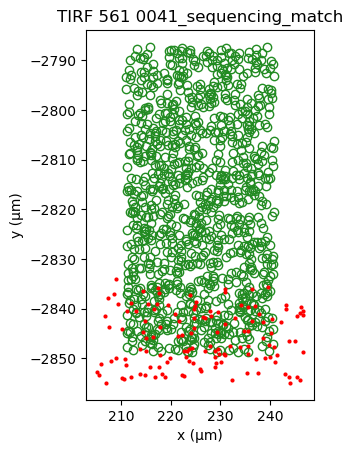

../_images/SPARXS_3_aligning_datasets_34_0.png

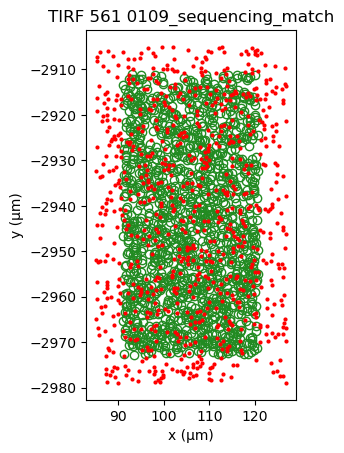

../_images/SPARXS_3_aligning_datasets_34_1.png

One way of determining whether the alignment is correct, is by looking at the inter point set distance histogram. A correct match should show a clear peak at small distances (absent here).

[17]:

fig, ax = plt.subplots(figsize=(4,3))
ax.hist(sequencing_matches[50].distance_matrix().flatten(), bins=25, range=(0,1))
ax.set_xlabel('Distance (μm)')
ax.set_ylabel('Count')
_ = ax.set_title('Distance histogram')

../_images/SPARXS_3_aligning_datasets_36_0.png

Perform FOV alignment#

Then the datasets for each FOV are aligned.

[18]:

sequencing_matches.transformation = AffineTransform() # Reset alignment
sequencing_matches.transformation_inverse = AffineTransform()

[19]:

sequencing_matches.serial.cross_correlation(divider=0.1, kernel_size=7, gaussian_sigma=1, crop=True, plot=False)

  0%|▏                                                                                 | 2/744 [00:00<00:48, 15.33it/s]

Serial processing

100%|████████████████████████████████████████████████████████████████████████████████| 744/744 [02:23<00:00,  5.19it/s]

[20]:

# bounds = ((0.97, 1.03), (-0.05, 0.05), (-5, 5), (-5, 5))
# sequencing_matches.parallel.kernel_correlation(bounds, sigma=0.125, crop=True,
#                                          strategy='best1bin', maxiter=1000, popsize=50, tol=0.01,
#                                          mutation=0.25, recombination=0.7, seed=None, callback=None, disp=False,
#                                          polish=True, init='sobol', atol=0, updating='immediate', workers=1,
#                                          constraints=())

[21]:

sequencing_matches[0].show()
sequencing_matches[50].show()

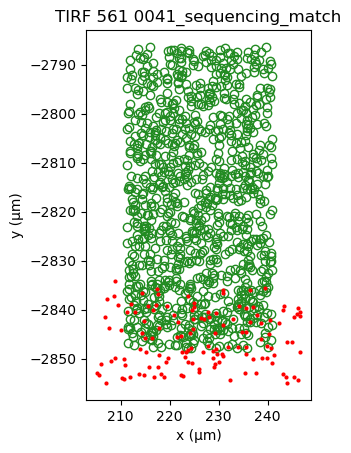

../_images/SPARXS_3_aligning_datasets_42_0.png

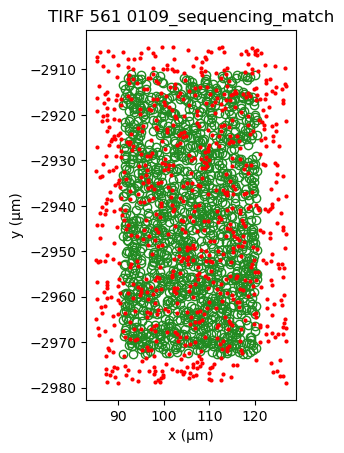

../_images/SPARXS_3_aligning_datasets_42_1.png

Applying cross-correlation, shows the formation of a peak, indicating better alignment.

[22]:

fig, ax = plt.subplots(figsize=(4,3))
ax.hist(sequencing_matches[50].distance_matrix().flatten(), bins=25, range=(0,1))
ax.set_xlabel('Distance (μm)')
ax.set_ylabel('Count')
_ = ax.set_title('Distance histogram')

../_images/SPARXS_3_aligning_datasets_44_0.png

[23]:

bounds = ((0.99, 1.01), (-0.01, 0.01), (-1, 1), (-1, 1))
sequencing_matches.parallel.kernel_correlation(bounds, sigma=0.125, crop=True,
                                         strategy='best1bin', maxiter=1000, popsize=50, tol=0.001,
                                         mutation=0.25, recombination=0.7, seed=None, callback=None, disp=False,
                                         polish=True, init='sobol', atol=0, updating='immediate', workers=1,
                                         constraints=())

  0%|                                                                                          | 0/744 [00:00<?, ?it/s]

Parallel processing

100%|████████████████████████████████████████████████████████████████████████████████| 744/744 [01:09<00:00, 10.75it/s]

[24]:

sequencing_matches[0].show()
sequencing_matches[50].show()

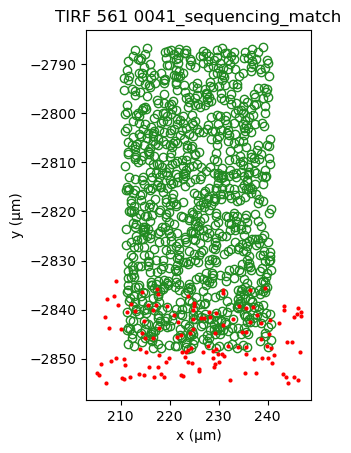

../_images/SPARXS_3_aligning_datasets_46_0.png

../_images/SPARXS_3_aligning_datasets_46_1.png

Additionally applying kernel correlation, creates a sharper peak.

[25]:

fig, ax = plt.subplots(figsize=(4,3))
ax.hist(sequencing_matches[50].distance_matrix().flatten(), bins=25, range=(0,1))
ax.set_xlabel('Distance (μm)')
ax.set_ylabel('Count')
_ = ax.set_title('Distance histogram')

../_images/SPARXS_3_aligning_datasets_48_0.png

[26]:

sequencing_matches.save()

 21%|████████████████▊                                                              | 158/744 [00:00<00:00, 837.46it/s]

Parallel processing

100%|██████████████████████████████████████████████████████████████████████████████| 744/744 [00:00<00:00, 1370.29it/s]

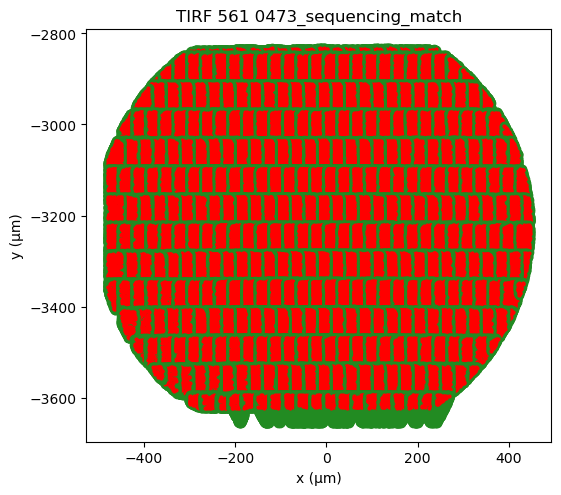

Plotting the alignments from all fields of view (FOVs) can also indicate whether there is correct alignment. Overall, the FOVs should align nicely on a grid. In case a FOV deviates from the grid, then it is likely misaligned. Here, nearly all FOVs are aligned well, except the 3rd FOV from the left in the bottom row.

[27]:

# Use "%matplotlib qt" to open in a seprate window for closer examination.
%matplotlib inline
fig, ax = plt.subplots(figsize=(6,6))
sequencing_matches[0:381].serial.show(crop=True, axis=ax)

  1%|▋                                                                                 | 3/381 [00:00<00:15, 25.02it/s]

Serial processing

100%|████████████████████████████████████████████████████████████████████████████████| 381/381 [00:15<00:00, 24.66it/s]

../_images/SPARXS_3_aligning_datasets_51_3.png

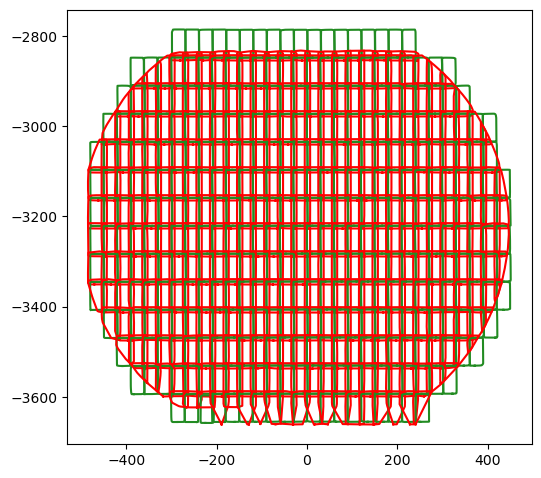

Also from the outlines of the aligned datasets one can spot misaligned FOVs, e.g. the 3rd FOV from the left in the bottom row.

[28]:

fig, ax = plt.subplots(figsize=(6,6))
_ = sequencing_matches[0:381].serial.show_outline(axis=ax)

  4%|███▌                                                                            | 17/381 [00:00<00:02, 151.66it/s]

Serial processing

100%|███████████████████████████████████████████████████████████████████████████████| 381/381 [00:03<00:00, 126.13it/s]

../_images/SPARXS_3_aligning_datasets_53_3.png

Determine corresponding pairs#

Determine appropriate distance threshold#

To determine an appropriate distance threshold, we make a histogram of the distances smaller than 1 μm.

[29]:

distance_matrices = sequencing_matches[0:381].serial.distance_matrix(max_distance=1).todense().flatten().squeeze()
distances = np.array(np.hstack(distance_matrices)).squeeze()
distances = distances[distances>0]

  2%|█▎                                                                                | 6/381 [00:00<00:06, 56.45it/s]

Serial processing

100%|████████████████████████████████████████████████████████████████████████████████| 381/381 [00:13<00:00, 27.46it/s]
 30%|███████████████████████▌                                                      | 115/381 [00:00<00:00, 1086.73it/s]

Serial processing

100%|██████████████████████████████████████████████████████████████████████████████| 381/381 [00:00<00:00, 1248.36it/s]
 21%|████████████████▌                                                               | 79/381 [00:00<00:00, 780.87it/s]

Serial processing

100%|███████████████████████████████████████████████████████████████████████████████| 381/381 [00:00<00:00, 702.32it/s]
100%|█████████████████████████████████████████████████████████████████████████████| 381/381 [00:00<00:00, 24340.55it/s]

Serial processing

[30]:

def random_distance_distribution(r, N_dist, N_m, A, bin_width):
    # Ndist = Ns * Nd
    return (N_dist - N_m) / A * 2 * np.pi * r * bin_width

def match_distance_distribution(r, N_m, sigma, bin_width):
    # sigma = np.sqrt(sigma_s**2 + sigma_d**2)b
    return 2 * N_m * np.exp(-(r**2 + bin_width**2 / 4) / (2 * sigma**2)) * np.sinh(r * bin_width / (2* sigma**2))

def total_distance_distribution(r, N_dist, N_m, A, sigma, bin_width):
    return match_distance_distribution(r, N_m, sigma, bin_width) + random_distance_distribution(r, N_dist, N_m, A, bin_width)

[31]:

A = np.sum([mapping.destination_cropped_area for mapping in sequencing_matches[0:381]])
N_s = np.sum([mapping.source_cropped.shape[0] for mapping in sequencing_matches[0:381]]).astype(float)
N_d = np.sum([mapping.destination_cropped.shape[0] for mapping in sequencing_matches[0:381]]).astype(float)
N_dist = N_s * N_d

[32]:

r_range = (0,1)
number_of_bins = 100
bin_width = (r_range[1]-r_range[0])/number_of_bins

fig, ax = plt.subplots()
counts, bins, _ = ax.hist(distances, number_of_bins, range=r_range, color='gray')
bin_centers = r = (bins[:-1]+bins[1:])/2

fit_selection = bin_centers < 0.15

from scipy.optimize import curve_fit
def fun2(r, N_m, sigma):
    return match_distance_distribution(r, N_m, sigma, bin_width)

popt, pcov = curve_fit(fun2, bin_centers[fit_selection], counts[fit_selection], p0=(N_s, 0.2), bounds=((0,0),(np.inf, np.inf)))

N_m_fit, sigma_fit = popt

ax.plot(bin_centers[fit_selection], match_distance_distribution(bin_centers[fit_selection], N_m_fit, sigma_fit, bin_width),
        label='Match distance fit', c='r', linestyle='dashed')

ax.plot(bin_centers, random_distance_distribution(bin_centers, N_dist, N_m_fit, A, bin_width),
        label='Match distance fit', c='b', linestyle='dashed')


ax.set_xlabel('Distance (μm)')
ax.set_ylabel('Count')


ax.text(0.25, 0.85, '\n$N_{dist}$\n$N_m$\n$A$\n$\sigma$', size=10, rotation=0,
         ha="left", va="center", transform=ax.transAxes,
         bbox=dict(boxstyle="round", ec='white', fc='white')
         )

ax.text(0.35, 0.85, f'Estimated:\n{N_dist:.2e}\n\n{A:.2e}\n', size=10, rotation=0,
         ha="left", va="center", transform=ax.transAxes,
         bbox=dict(boxstyle="round", ec='white', fc='white')
         )

ax.text(0.55, 0.85, f'Fit:\n\n{N_m_fit:.2e}\n\n{sigma_fit:.4f}', size=10, rotation=0,
         ha="left", va="center", transform=ax.transAxes,
         bbox=dict(boxstyle="round", ec='white', fc='white')
         )

[32]:

Text(0.55, 0.85, 'Fit:\n\n7.10e+04\n\n0.0966')

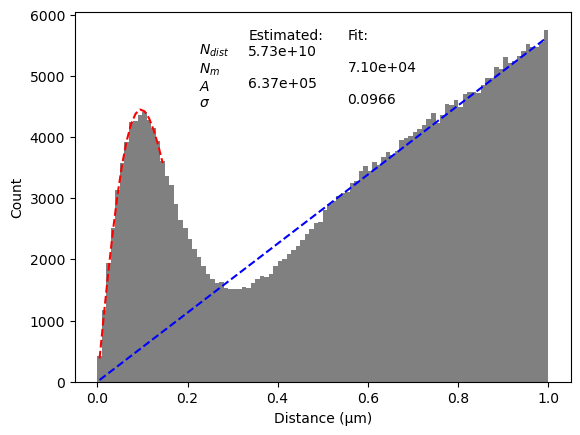

../_images/SPARXS_3_aligning_datasets_60_1.png

In the plot a peak can be seen for small distances, which is the result of corresponding points. For larger distances, there is a linear increase, which is caused by randomly matched points. We fit the first part of the peak to a Gaussian to determine the point set parameters for matching points (red). Two other parameters (A and N_{dist} can be estimated from the data directly and determine the linear relation (blue).

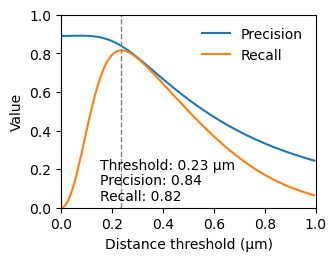

The threshold should be chosen so that it includes most corresponding points, but excludes randomly matched points. To determine a good value for the threshold we estimate the precision and recall.

[33]:

from scipy.special import factorial

def f_random(r, rho):
    return 2*rho*np.pi*r

def P_random(r, N, rho):
    _lambda = rho * np.pi * r ** 2
    return _lambda**N * np.exp(-_lambda) / factorial(N)

def f_match(r, sigma):
    return r/(sigma**2)*np.exp(-r**2/(2*sigma**2))

def P_match(r, sigma):
    return 1-np.exp(-r**2/(2*sigma**2))

def P_TP(r, alpha_s, alpha_d, sigma, rho_s, rho_d):
    return alpha_s * alpha_d * P_match(r, sigma) * P_random(r, 0, rho_s) * P_random(r, 0, rho_d)

def P_FP(r, alpha_s, alpha_d, sigma, rho_s, rho_d):
    return 0.5*alpha_s * alpha_d * (1 - P_match(r, sigma)) * P_random(r, 1, rho_d) * \
                (alpha_s * (1-P_match(r,sigma)) + (1-alpha_s)) * P_random(r, 0, rho_s) + \
           0.5*alpha_s * alpha_d * (1 - P_match(r, sigma)) * P_random(r, 1, rho_s) * \
                (alpha_d * (1-P_match(r,sigma)) + (1-alpha_d)) * P_random(r, 0, rho_d) + \
           alpha_s * (1-alpha_d) * P_random(r, 1, rho_d) * \
                (alpha_s * (1-P_match(r,sigma)) + (1-alpha_s)) * P_random(r, 0, rho_s) + \
           (1-alpha_s) * alpha_d * P_random(r, 1, rho_s) * \
                (alpha_d * (1-P_match(r,sigma)) + (1-alpha_d)) * P_random(r, 0, rho_d)


def P_P_total(*args):
    return P_TP(*args) + P_FP(*args)

def P_TN(r, alpha_s, alpha_d, sigma, rho_s, rho_d):
    return  alpha_s * (1-alpha_d) * (1-P_random(r, 1, rho_d)) + \
            alpha_s * (1-alpha_d) * P_random(r, 1, rho_d) * \
            (   alpha_s * (P_match(r,sigma) + (1-P_match(r,sigma))*(1-P_random(r, 0, rho_s))) + \
                (1-alpha_s) * (1-P_random(r, 0, rho_s))   ) + \
            (1-alpha_s) * alpha_d * (1-P_random(r, 1, rho_s)) + \
            (1-alpha_s) * alpha_d * P_random(r, 1, rho_s) * \
            (   alpha_d * (P_match(r,sigma) + (1-P_match(r,sigma))*(1-P_random(r, 0, rho_d))) + \
                (1-alpha_d) * (1-P_random(r, 0, rho_d))   ) + \
            (1-alpha_s) * (1-alpha_d)

def P_FN(r, alpha_s, alpha_d, sigma, rho_s, rho_d):
    return  alpha_s * alpha_d * P_match(r, sigma) * (1-P_random(r, 0, rho_s) * P_random(r, 0, rho_d)) + \
            0.5*alpha_s * alpha_d * (1-P_match(r, sigma)) * (1-P_random(r, 1, rho_d)) + \
            0.5*alpha_s * alpha_d * (1-P_match(r, sigma)) * P_random(r, 1, rho_d) * \
            (   alpha_s * (P_match(r,sigma) + (1-P_match(r,sigma))*(1-P_random(r, 0, rho_s))) + \
                (1-alpha_s) * (1-P_random(r, 0, rho_s))   ) + \
            0.5*alpha_s * alpha_d * (1-P_match(r, sigma)) * (1-P_random(r, 1, rho_s)) + \
            0.5*alpha_s * alpha_d * (1-P_match(r, sigma)) * P_random(r, 1, rho_s) * \
            (   alpha_d * (P_match(r,sigma) + (1-P_match(r,sigma))*(1-P_random(r, 0, rho_d))) + \
                (1-alpha_d) * (1-P_random(r, 0, rho_d))   )

def P_N_Total(*args):
    return P_TN(*args) + P_FN(*args)

[34]:

rho_s = N_s/A
rho_d = N_d/A
alpha_s = N_m_fit / N_d
alpha_d = N_m_fit / N_s
N = N_m_fit / alpha_s / alpha_d
rho = N/A

print('rho_s =', rho_s)
print('rho_d =', rho_d)
print('alpha_s =', alpha_s)
print('alpha_d =', alpha_d)
print('N =', N)

rho_s = 0.66868076452285
rho_d = 0.21095862262662107
alpha_s = 0.5284088392472044
alpha_d = 0.16670496120950204
N = 806532.6851972315

[35]:

tp = P_TP(r, alpha_s, alpha_d, sigma_fit, rho_s, rho_d)
fp = P_FP(r, alpha_s, alpha_d, sigma_fit, rho_s, rho_d)
tn = P_TN(r, alpha_s, alpha_d, sigma_fit, rho_s, rho_d)
fn = P_FN(r, alpha_s, alpha_d, sigma_fit, rho_s, rho_d)

sensitivity = tp/(tp+fn)
specificity = tn/(tn+fp)
precision = tp/(tp+fp)
fallout = fp/(fp+tn)

[36]:

figure, axis = plt.subplots(figsize=(3.25, 2.5), layout='constrained')

axis.plot(r, precision, label='Precision', ls='-')
axis.plot(r, sensitivity, label='Recall', ls='-')

axis.set_xlim(0,1)
axis.set_ylim(0,1)
axis.legend(loc='upper right', frameon=False)

axis.set_xlabel('Distance threshold (μm)')
axis.set_ylabel('Value')

threshold = r[sensitivity.argmax()]
# threshold = 0.20
tp_t = P_TP(threshold, alpha_s, alpha_d, sigma_fit, rho_s, rho_d) * N
# tp_t = P_TP(threshold, alpha_s, alpha_d, sigma_fit, rho_s_v[sensitivity==sensitivity.max()], rho_d_v[sensitivity==sensitivity.max()]) * N
fp_t = P_FP(threshold, alpha_s, alpha_d, sigma_fit, rho_s, rho_d) * N
tn_t = P_TN(threshold, alpha_s, alpha_d, sigma_fit, rho_s, rho_d) * N
fn_t = P_FN(threshold, alpha_s, alpha_d, sigma_fit, rho_s, rho_d) * N
precision_at_threshold =  (tp_t/(tp_t+fp_t)).item()
sensitivity_at_threshold = (tp_t/(tp_t+fn_t)).item()

# threshold=0.2
axis.vlines(threshold, 0, 1, ls='--', color='grey', lw=1, label='Chosen threshold')

text = ['Threshold: ' +f'{threshold:.2}' + r' µm',
        'Precision: ' + f'{precision_at_threshold:.2}',
        'Recall: ' + f'{sensitivity_at_threshold:.2}',
       ]

x = 0.15
ps = 0.2+-0.08*np.arange(3)
for i, t in enumerate(text):
    axis.text(x, ps[i], t, transform=axis.transAxes, ha='left', va='baseline', )

# figure.savefig(main_path / 'precision and sensitivity model.pdf', dpi=300)

../_images/SPARXS_3_aligning_datasets_65_0.png

We chose the threshold at the maximum recall, as it gives us the most data points, while still obtaining a resonable precision.

Determine corresponding pairs#

[37]:

sequencing_matches.destination_distance_threshold = 0.22 # μm
sequencing_matches.determine_matched_pairs()
sequencing_matches.save()

  0%|                                                                                          | 0/744 [00:00<?, ?it/s]

Parallel processing

100%|███████████████████████████████████████████████████████████████████████████████| 744/744 [00:01<00:00, 518.70it/s]
 20%|███████████████▉                                                               | 150/744 [00:00<00:00, 792.57it/s]

Parallel processing

100%|██████████████████████████████████████████████████████████████████████████████| 744/744 [00:00<00:00, 1358.43it/s]

[38]:

sequencing_matches[0].show()
sequencing_matches[50].show()

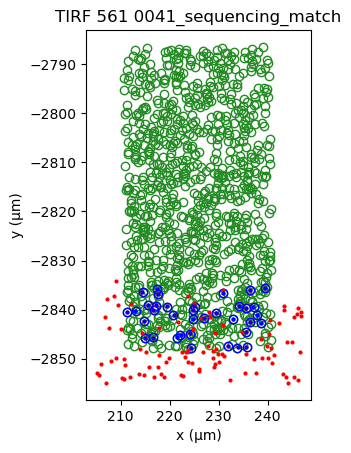

../_images/SPARXS_3_aligning_datasets_69_0.png

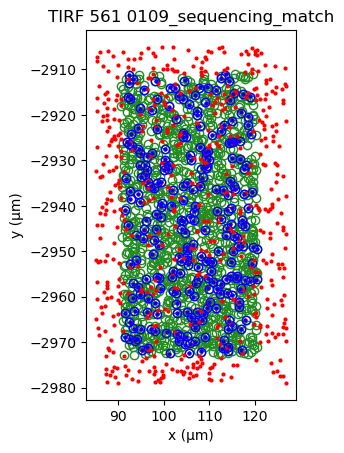

../_images/SPARXS_3_aligning_datasets_69_1.png

[39]:

# Use matplotlib qt to open in a seprate window for closer examination.
%matplotlib inline
# %matplotlib qt
fig, ax = plt.subplots(figsize=(6,6))
sequencing_matches[0:381].serial.show(crop=True, axis=ax)

  1%|▊                                                                                 | 4/381 [00:00<00:09, 38.81it/s]

Serial processing

100%|████████████████████████████████████████████████████████████████████████████████| 381/381 [00:15<00:00, 24.68it/s]

../_images/SPARXS_3_aligning_datasets_70_3.png

3. Aligning datasets

Contents

3. Aligning datasets#

Experiment import#

Coarse tile alignment#

Generate tile alignment files#

Perform tile alignment#

Extract sequencing data per FOV#

Fine FOV alignment#

Generate FOV alignment files#

Perform FOV alignment#

Determine corresponding pairs#

Determine appropriate distance threshold#

Determine corresponding pairs#
